- Incredible efficiency and low power consumption - 2 μsec Dead Band - 1-Year Limited Warranty
Application :
1/10 Crawler
PRODUCT SPECIFICATIONS

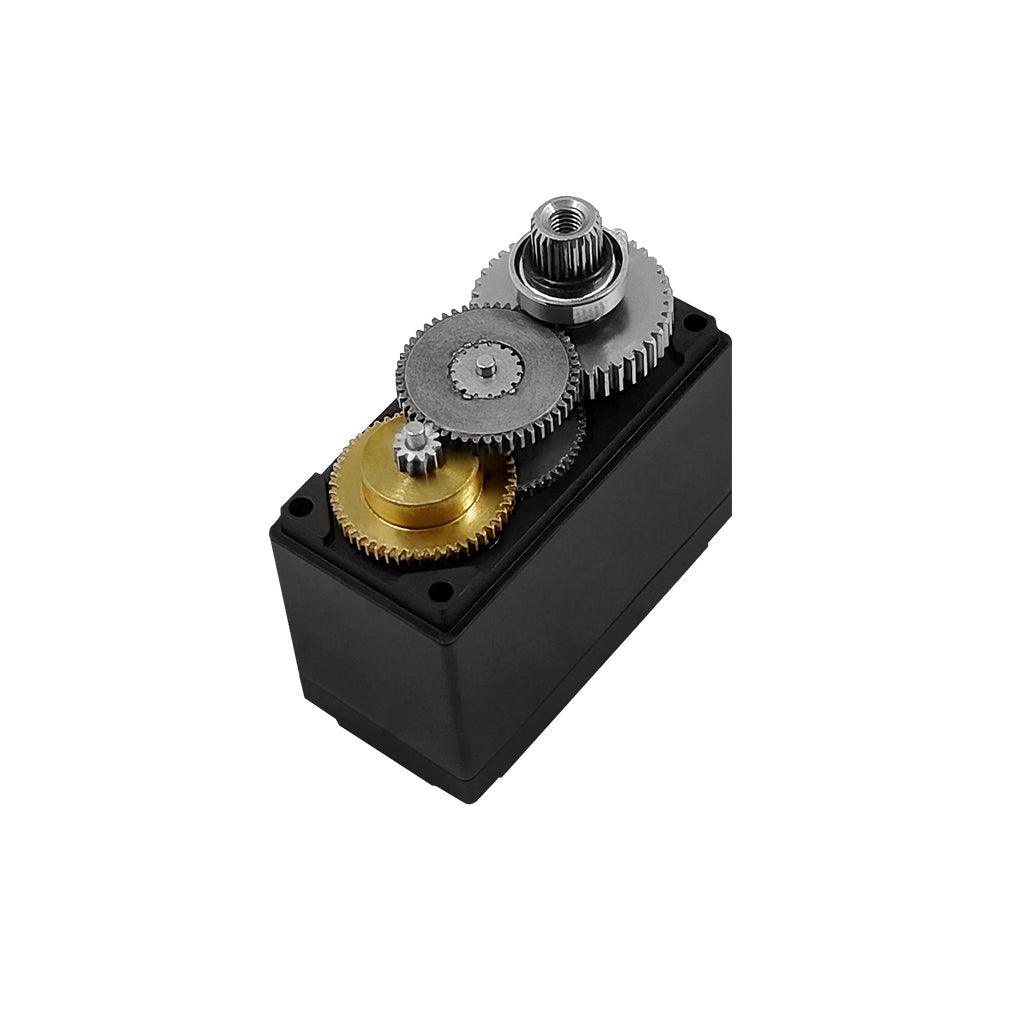

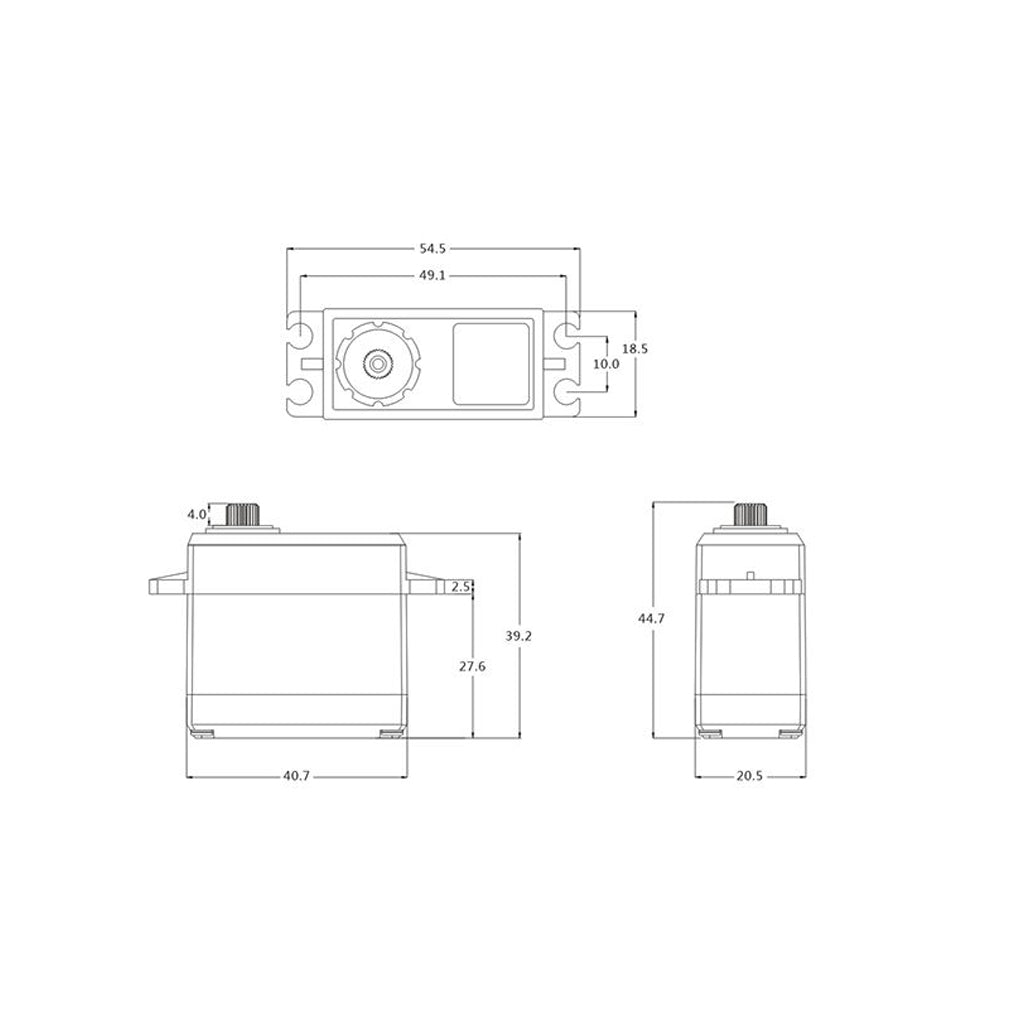

Type: Digital Bearing: Dual Motor Type: DC Gear Type: Metal Gear Material: Copper & Aluminum control system: pulse width control working frequence: 1520μs / 330hz operating voltage: dc4.8-6.0v operating temperature range: -10 to + 60 degree operating speed (4.8v): 0.17 sec/60 degrees at no load operating speed (6.0v): 0.15 sec/60 degrees at no load stall torque (4.8v): 15.5kg.cm (215.3 oz/in) stall torque (6.0v): 17.0kg.cm (236.1 oz/in) potentiometer drive: direct drive dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in weight: 56.0g (1.98 oz) connector wire length: jr 290 mm
